Scotty Foam-Fast Applicators

Scotty - Foam-Fast Applicators-01

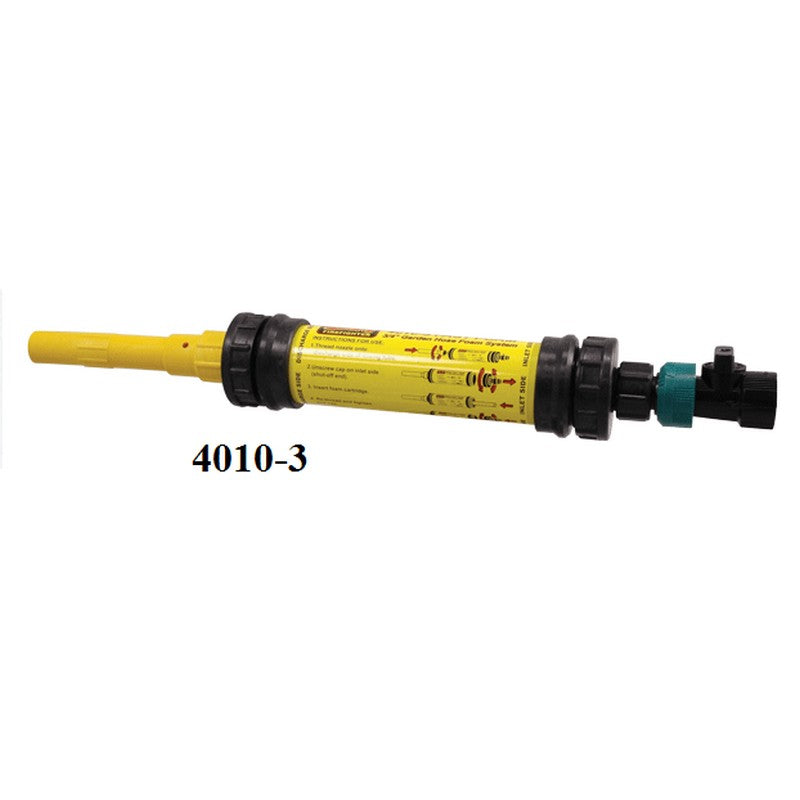

  • 4010-3 Mixer, ¾" Shut-Off and 3 GPM nozzle, uses 6" cartridges, ¾" GHT

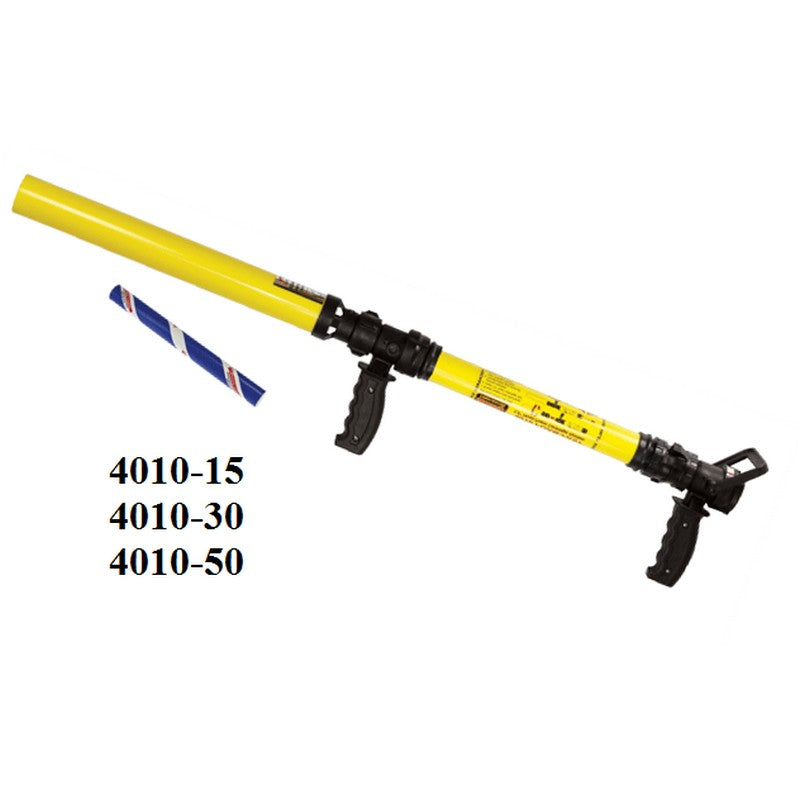

    4010-15 Mixer, 1-½" pistol grip bale and 15 GPM nozzle, uses 12" cartridges,
    1-½" NHT, NP or BSP

    4010-30 Mixer, 1-½" pistol grip bale and 30 GPM nozzle, uses 12" cartridges,
    1-½" NHT, NP or BSP

    4010-50 Mixer, 1-½" pistol grip bale and 50 GPM nozzle, uses 12" cartridges,
    1-½" NHT, NP or BSP

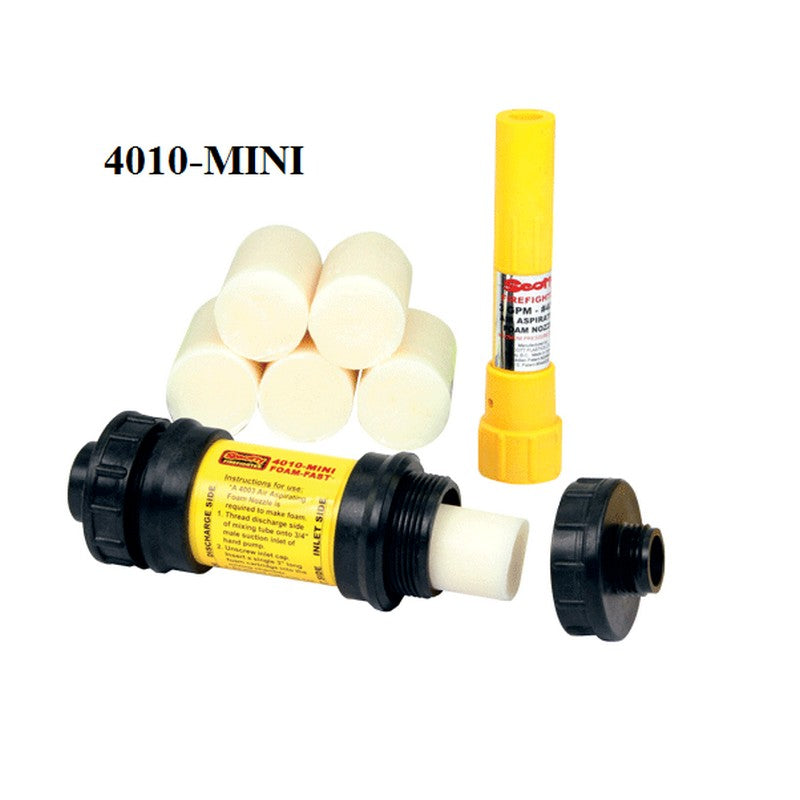

    4010-MINI Mixing unit for Scotty 4000 Water Hand Pump, includes 3 GPM foam nozzle, uses 3" cartridges, ¾" GHT


    • Simple and effective method of deploying Foam-Fast™ wetting agent onto a fire scene.

    • To operate, open the inlet side of the mixing chamber, insert a Foam-Fast™ cartridge, reseal the inlet end cap, attach to a supply hose and spray Class A foam.

    • The foam cartridge will dilute into the water flow and emerge through the Air Aspirating Nozzle.

    • Foam-Fast™ cartridges are produced by ICL Performance, makers of Phos-Chek Foam.

    • Available in multiple flow rates (see chart below) for ¾"GHT and 1-½" NHT, NP or BSP threaded hose lines.

    • A 4010-MINI will convert a Scotty 4000 Water Hand Pump into a foam generator. Comes with an Air Aspirating Nozzle and uses 3" long cartridges.
