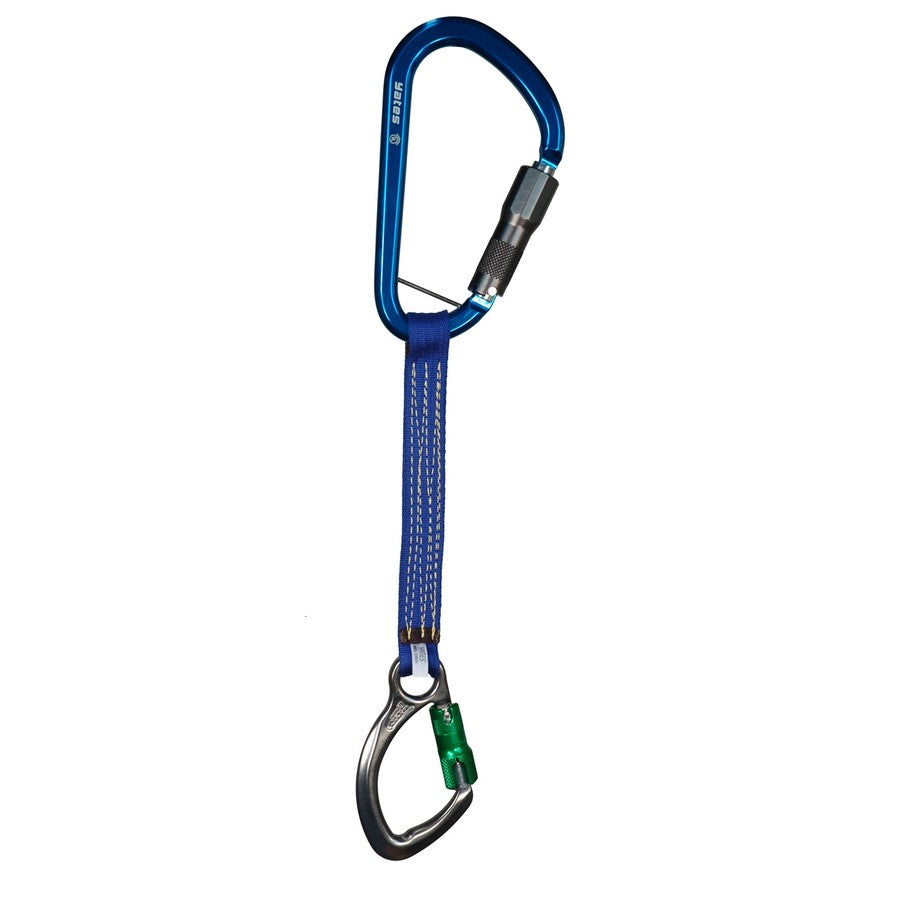

Allows the firefighter to attach themselves safely to a ladder rung or tower platform. Available in overall length of connections which measures 20 inches. NFPA limites overall length of lanyard from the surface of the belt or harness to the connection of the inside of the connection device to 24 inches. Easy to operate double locking snap hooks are located at each end of the strap. Both aluminum carabiners meet 3600 lbf. (16kN) side load gate strength requirements of ANSI Z359.12-2009 standard. Gate open strength 3150 lbf. (14kN). Both large ladder carabiner and smaller captive eye harness/ladder belt carabines are hot forged from aluminium. The extra large hook will open to 2.1 inches to accommodate any ladder rung. The small hook is attached to the users belt or harness D ring. Lanyard is made of a new type of webbing constructed with a Kevlar interior for strength and a Nomex exterior for wear and durability.
• Ladder carabiner gate opening dimension 2.1" (54mm), Interior length 6.8" (173mm). Weight 1lb .5 oz.
• Ladder carabiner UL classified to NFPA 1983/2012 edition standards "G" General Rating. Certified by UL to meet ANSI/ASSE Z259.12-2009 Standard.
• Ladder extension sling and small connector carabiner UL classified to NFPA 1983/2012 edition standard "T" Technical Use. Technical use rating 6750 lbf. (30kN).
